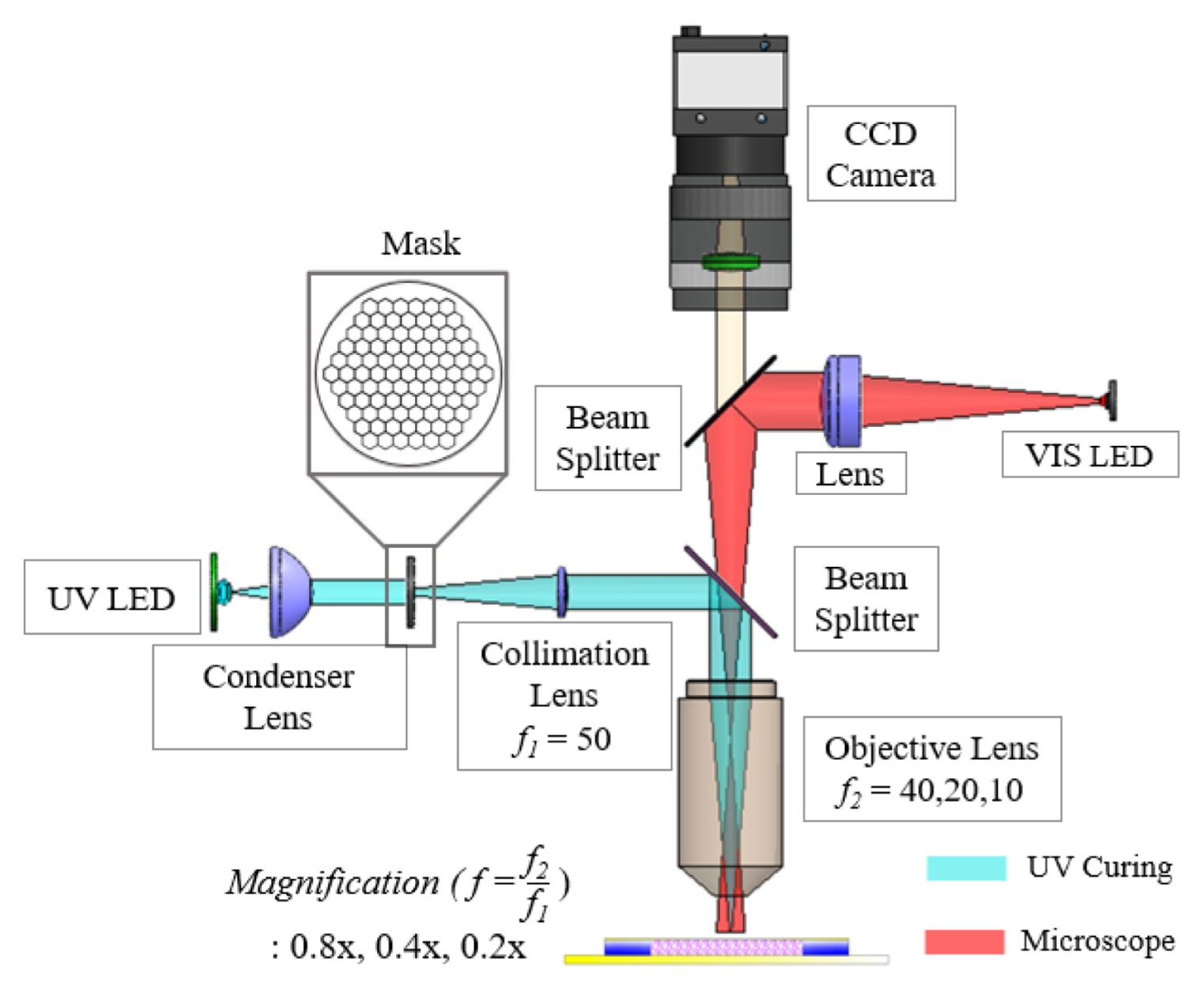

The field of tissue engineering requires versatile scaffold fabrication technologies capable of inducing cell proliferation and differentiation to promote functional tissue regeneration. Traditional fabrication methods face inherent trade-offs among production speed, resolution, and cost, which hinder their ability to replicate the intricate hierarchical structures of biological tissues. To address these challenges, we developed a mask projection photolithography system with variable optical magnification. This system allows for precise control of the microscale feature size in the final product using a single mask, by adjusting the optical magnification with interchangeable objective lenses and a relay lens. With this system, we successfully fabricated porous scaffolds with reproducible pore sizes ranging from 25 to 100 μm, exposing a Poly (ethylene glycol) diacrylate (PEGDA, Mn = 700) hydrogel precursor solution through a honeycomb-patterned mask for durations of just 3 to 10 seconds. The mask projection system presented in this study offers a powerful and efficient platform for creating the microstructures essential for various advanced biomedical applications, including tissue engineering, drug delivery, and organoid-on-a-chip, thanks to its unique combination of speed, precision, and cost-effectiveness.

The practical application of Raman spectroscopy is often constrained by its low signal sensitivity, particularly for low-concentration liquid samples. This study introduces a straightforward platform that enhances Raman signals by physically concentrating analytes, providing an alternative to complex substrate fabrication and chemical treatments. We employed a femtosecond pulse laser to create functional micro-grid patterns on a silicon (Si) substrate. This laser process induces localized ablation and simultaneous oxidation, resulting in three-dimensional, hydrophilic microstructures of nonstoichiometric silicon oxide (SiO_2-x). These grid structures effectively confine aqueous sample droplets through a pinning effect, functioning as a microwell array that traps and concentrates suspended polystyrene (PS) particles. This physical concentration mechanism achieved a notable signal enhancement, with a maximum factor of 5.2 for PS particles, without the need for sample dehydration. This work presents a simple, cost-effective, and highly reproducible alternative to conventional SERS for analyzing low-concentration liquid samples, demonstrating strong potential for integration into microfluidic systems.

A compositional library of Ag-Ti thin films was fabricated using combinatorial RF magnetron sputtering. The films exhibited a gradual compositional gradient across the substrate, ranging from Ag-rich to Ti-rich compositions. SEM analysis revealed a uniform thickness of approximately 150 nm for all films. The relationship between composition and properties was investigated, demonstrating that increasing Ag content led to decreased resistivity and increased density. These results can be attributed to the high electrical conductivity and density of Ag. To optimize SAW device performance, a balance between resistivity and density must be achieved. While Ag-rich films offer higher electrical conductivity, they may experience reduced inverse piezoelectric effects due to increased density. Conversely, Ag-poor films may have improved inverse piezoelectric effects but reduced electrical conductivity.
